CATS: cultural-heritage classification using LLMs and distribute model

In the case of cultural heritage with little textual information, it is difficult to classify using text alone, so it is possible to utilize a generative model represented visually. As such, the management system of cultural heritage data has been classified and managed mainly by text, but this study proposes a new method of generating images and classifying them through them.

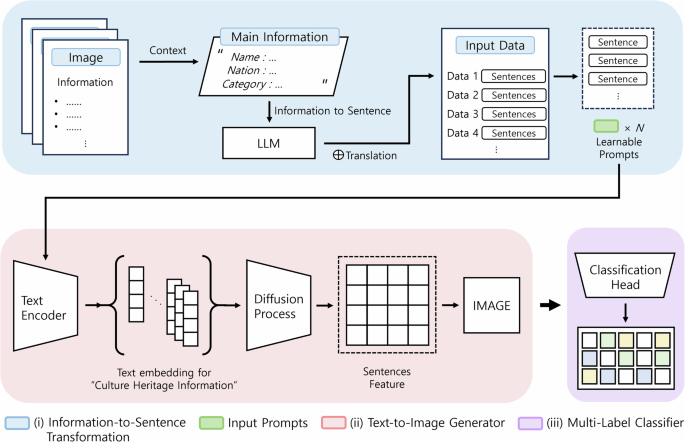

Figure 5 shows the overall process of this study. This process enables managers and users of difficult cultural heritage information to visually understand and utilize cultural heritage information through images. In addition, even if the amount of information is small, the generated images can be used to find new classification associations.

Table of Contents

Problem Setting

Prompt Refining

Each cultural heritage item commonly possesses information such as name, material, and historical context, and this information was used to construct prompts. In this study, the results of using Korean and English were compared and analyzed; the English descriptions generated images with more consistency and higher utility as visual materials. Specifically, using Korean directly produced very similar results even between unrelated meanings. As the historical materials included foreign languages besides Korean, better results could not be obtained. Therefore, an attempt was made to unify these into English prompts. This process can be seen in (i) of Fig. 5. Traditional Korean languages posed challenges for the latest LLMs, which could not understand them. Therefore, the GPT 3.5 is used, as it can easily translate word corpus into English descriptions.

Text-to-Image Generator

In this study, we analyzed various text-to-image generative models including Openjourney, DALL-E2, DALL-E3, SD 1.5, SD 2.1, and SDXL 1.0. Initially, images were generated using models fine-tuned in Korean to directly use Korean text. However, we observed that these models generated images that were not variations of similar patterns but entirely different content for the same input. This issue includes the fact that models trained in Korean lack sufficient learning of historical content to generate appropriate sentences. The Korean fine-tuned Stable Diffusion model demonstrated fast processing speed and cost efficiency but tended to generate unrelated images when expressing classical words, making it unsuitable for multi-label classification tasks. Therefore, we translated cultural heritage information containing classical words into English and compared text-to-image generative models based on this input. Among them, DALL-E 3 and SDXL 1.0 particularly excelled in generating images suitable for English descriptions. However, DALL-E 3, despite its excellent performance, faces difficulties in mass image generation due to its closed-source nature. In contrast, SDXL 1.0, being open-source, successfully generated visually distinct and excellent feature images.

Considering that semantic visualization results are more important than visual quality in search systems, we employed the open-source and high-performance SDXL 1.0 for image generation. The process for generating images from textual descriptions is formulated as follows:

where I denotes the generated image, D represents the input sentences, and θ are the parameters of the model. We use SDXL 1.0, which is open source and has good performance and processing speed, and find that it produces visually distinguishable and good features. Since the performance of the search system is important in this study, the semantic visualization results are more important than the visual quality of the images.

Multi-Label Classifier

Multi-label classification was used to enable efficient classification and search in the image search system. The dataset used is structured in the MSCOCO⁵² format, with each image being assigned multiple labels. These labels are categorized according to super categories. As shown in Fig. 6, a model for multi-label classification can be applied to a retrieval system by simultaneously predicting classes belonging to each supercategory. Specifically, when imaging only the textual information of a cultural property, each image is multi-label classified to reveal the subclasses predicted by the model in each category. From these results, the model learns which features are similar between cultural heritage sites whose textual information has been imaged, and this allows it to find and connect similar cultural heritage sites. As a result, the system is able to analyze the associations between images and provide recommended images, which can be used to visually understand the relevance of cultural heritage information.

Figure 7 shows the structure of multi-label classification with a transformer-based architecture⁵³ for each super-category. This structure consists of two main streams: Spatial Stream and Semantic Stream. The Spatial Stream uses a Vision Transformer (ViT) to process the cultural heritage image data generated in the previous step. It divides the image into patches, extracts the visual features of each patch, converts them into vectors, and encodes them into a learnable form. The visual information in the image is processed through a transformer model, which is important for the classification process. The Spatial Stream uses a Vision Transformer (ViT) to process the cultural heritage image data generated in the previous step. It divides the image into patches, extracts the visual features of each patch, converts them into vectors, and encodes them into a learnable form. The visual information in the image is processed through a transformer model, which is important for the classification process. Semantic Stream uses BERT, a large-scale language model, to process textual information. The textual data as input contains the actual multi-label classes of the cultural heritage to be matched with the generated images. The stream learns by matching images generated from cultural heritage textual information with the actual categories of the cultural heritage. Specifically, it is trained by matching the generated images with the original textual information (category information: material, age, lifestyle). It analyzes the information between text and images, and understands the context and semantic relationships between labels. The two streams function independently, collecting visual and textual features respectively, which are then merged through a convolutional layer.

During this process, visual and text features are combined to prepare the data for final classification. The transformer encoder-decoder architecture then processes this combined data to produce the final classification result. This architecture is used to predict labels by considering the visual features of the image patches together with the semantic information in the text data. The process of connection and classification is formulated as follows:

$$P={Softmax}({\rm{W}}_{\rm{h}}\,*\, ({Concat}({\rm{f}}_{\rm{s}},\,{\rm{f}}_{\rm{t}}))+{b})$$

(2)

f_s and f_t and represent the feature vectors extracted from the spatial and semantic streams, respectively. W_h and b denote the trainable weights and biases. The Concat function concatenates the feature vectors from the two streams. The Softmax function converts each element of the final output vector into probabilities, presenting the label with the highest probability as the final prediction result.

Dataset

The dataset we will introduce is MUCH (Multi-purpose Universal Cultural Heritage), which is augmented with 9600 images of Korean cultural heritage, totaling 96,000 images. Of these, 86,400 images were used for training and 9600 images were used for validation. The dataset was created by processing data provided by the National Museum of Korea. The dataset is categorized into three super-categories: age, life, and material, with a total of 32 classes. We used name, era, and material information to conduct experiments with minimal information from the metadata. The difficulty of categorizing non-distinct objects comes from supercategories such as age, lifestyle, etc. Age has 11 classes, Lifestyle has 7 classes, and Material has 14 classes.

In Table 1, the classes within the subcategories of super categories are shown. Age includes classes categorizing age in Korea: Bronze Age, Early Iron Age, Proto-Three Kingdoms, Baek-je, Silla, Three Kingdoms, Unified Silla, Go-ryeo, Late Joseon, Joseon, Japanese colonial period. Material refers to the surface or texture of substances: wood, stone, soil, paper, mineral, fossil, seed, lacquer, leaf, leather, bone, fiber, ceramic, rubber. Last, Life-style represents the background of industrial and other age: transportation/communication, culture and art, social life, industry/livelihoods, dietary life, clothing life, daily life.

Table 1 Classification Based on Korean Age, Materials, and Lifestyles Using the MUCH Dataset
